About this item
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive Cooling: Passive chipset heatsink, VRM heatsink with 8 mm heatpipe, dual on-board M.2 heatsinks and a water pump header
- High-Performance Networking: 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, WiFi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V
- Best Gaming Connectivity: Supports PCIe® 4.0, HDMI® 2.0, and DisplayPort™ 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors
- 5-Way Optimization: Automated system-wide tuning including custom overclocking and cooling profiles
- Industry-Leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III
- DIY Friendly Design: M.2 Q-Latch, patented pre-mounted I/O shield, ASUS SafeSlot and BIOS FlashBack™
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB
lighting, including RGB headers and Gen 2 addressable headers
- Available: available
- Brand: Asus
- Model: Strix X570-E
- SKU: ac-asus-st570
- MPN: ROG STRIX X570-E GAMING WIFI II

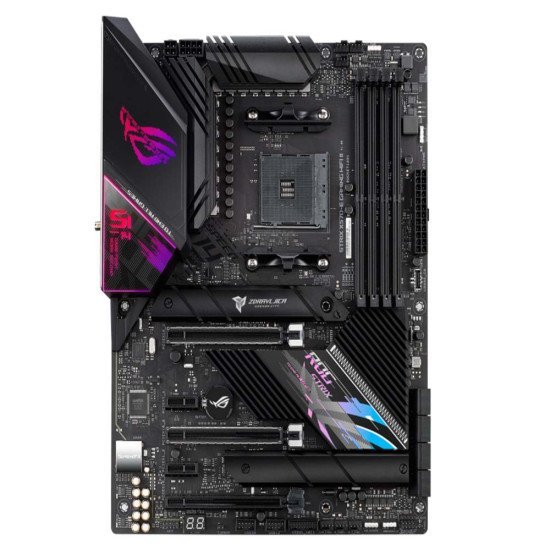

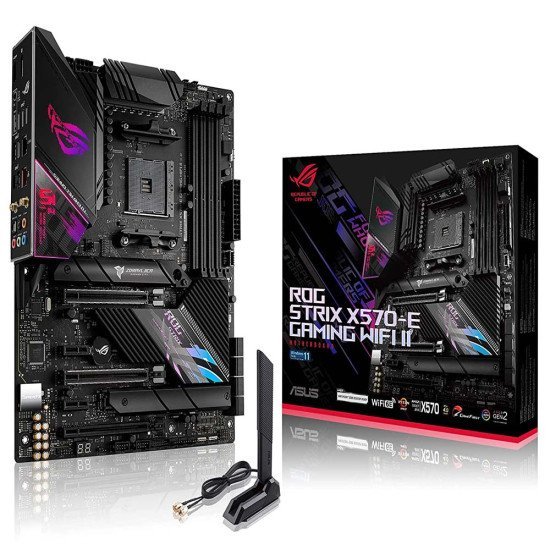

Asus Rog Strix X570-E Gaming WiFi II ATX Gaming Motherboard
| CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Chipset | AMD X570 |
| Memory | 3rd Gen AMD Ryzen™ Processors 4000(O.C.)/3866(O.C.)/3600(O.C.)/ 3400(O.C.)/3200(O.C.)/3000(O.C.)/ 2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * 3000(O.C.)/2800(O.C.)/2666/2400/ 2133 MHz Un-buffered Memory * 2666/2400/2133 MHz Un-buffered Memory |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Multi-GPU Support | 3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Supports AMD 2-Way CrossFireX™ Technology |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) *1 2 x PCIe 4.0 x1 |
| Storage | 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN | Intel® I211-AT, 1 x Gigabit LAN Controller(s) Realtek® RTL8125-CG 2.5G LAN Anti-surge LANGuard ROG GameFirst Technology |
| Wireless Data Network | 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz |
| Bluetooth | Bluetooth® 5.0 |
| Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link |
| USB Ports | 3rd Gen AMD RyzenTM Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, ) 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
| ROG Exclusive Features | ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III - Overwolf |
| Special Features | 5-Way Optimization by Dual Intelligent Processors 5 |
| Back I/O Ports | 1 x DisplayPort 1 x HDMI 5 x USB 3.1 Gen 1 Type-A 8 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Anti-surge 2.5G LAN (RJ45) port 1 x USB BIOS Flashback® Button(s) 1 x ASUS Wi-Fi Module 7 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port |
| Internal I/O Ports | 1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. |
| Manageability | WOL, PXE |
| Support Disc | Overwolf Anti-virus software (OEM version) WinRAR |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
