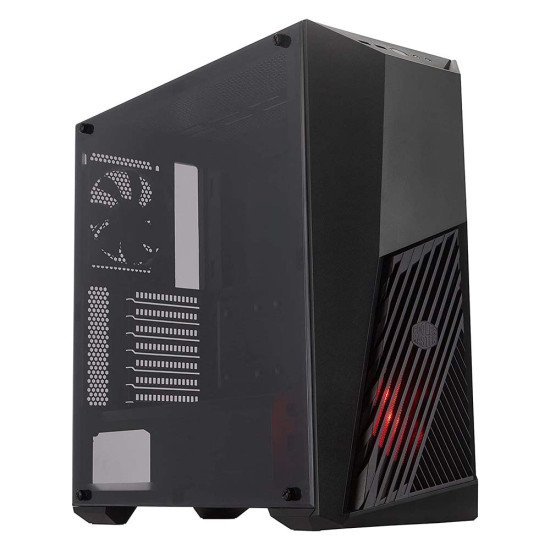

Model Number

MCB-K501L-KGNN-SR1

Available Colour

Black

Materials

Tempered Glass

Dimensions (L X W X H)

496mm x 217mm x 469mm (incl. Protrusions), 428.7mm x 205mm x 458.5mm (excl. Protrusions)

Volume (exlc. Protrusions)

40.3L

Motherboard Support

Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features)

Expansion slots

7

Drive Bays

5.25" DRIVE BAYS= 0

2.5" / 3.5" DRIVE BAYS (COMBO) = 2

2.5" DRIVE BAYS = 4 (2+2 combo)

I/O Panel

1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack

Pre Installed Fans

PRE-INSTALLED FANS – TOP = N/A

PRE-INSTALLED FANS – FRONT = 2x 120mm RGB LED

PRE-INSTALLED FANS – REAR = 1x 120mm

PRE-INSTALLED FANS – BOTTOM = N/A

Fan Support

FAN SUPPORT – TOP = 3x 120mm, 2x 140mm

FAN SUPPORT – FRONT = 3x 120mm, 2x 140mm

FAN SUPPORT – REAR = 1x 120mm

FAN SUPPORT – BOTTOM = N/A

Clearance

CLEARANCE - CPU COOLER = 165mm

CLEARANCE – PSU = 180mm/7.08", 295mm/11.61" (w/ HDD cage removed)

CLEARANCE – GFX = 410mm/16.1"

Cable routing

19mm

Dust Filters

Top, Front, Bottom

Power Supply

Bottom mount, ATX

Series

MasterBox Series

Size

Mid Tower

Warranty

2 Years

Note*

Price, feature and specifications are subject to change without notice.
