About this item

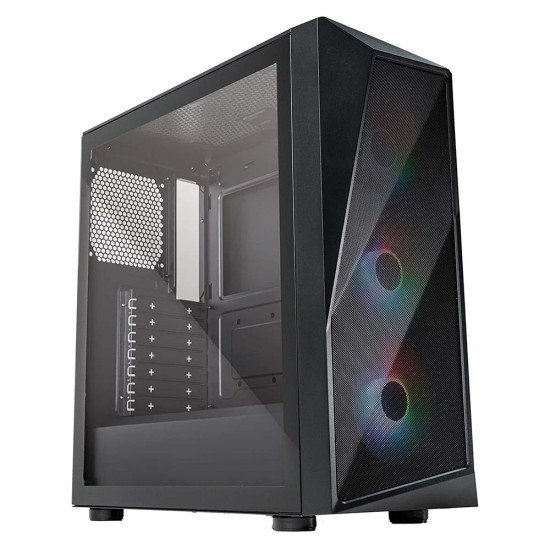

CMP 520's asymmetrical front panel design frames the pre-installed three 120mm ARGB fans as unique centerpieces on the build.
- Three 120mm ARGB Fans Included
- Mesh Geode Front Panel
- Versatile Cooling Options
- Full Black Coating & PSU Cover
- Breathable Power Supply Shroud
Three 120mm ARGB Fans Included

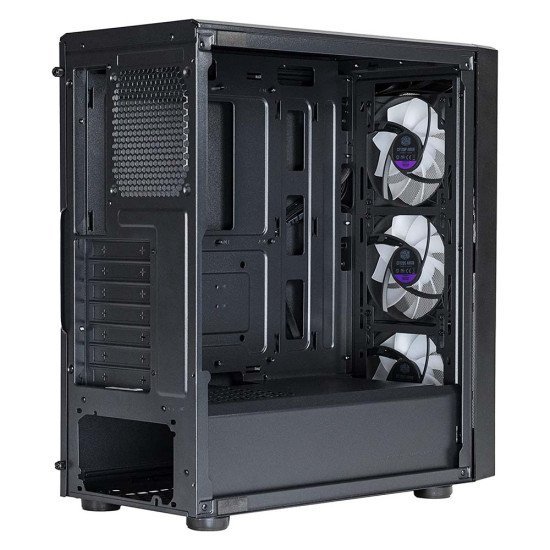

- Three pre-installed 120mm ARGB fans ensure stunning aesthetics, eye-catching design, and thermal excellence.
Mesh Geode Front Panel
- Inspired by asymmetrical crystal formations, the mesh front panel offers generous intake and efficient dust filtration.
Versatile Cooling Options
- Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Full Black Coating & PSU Cover
- Let your system stand out with an all-black background and a PSU cover to hide cables.
Breathable Power Supply Shroud
- The ventilated PSU cover supports both active and passive cooled PSUs installed in multiple orientations.
Room For Upgrades
- Support for up to a 350mm graphics card, a 161mm CPU cooler, and multiple fans/radiators locations provides room for upgrades.
- Available: available
- Brand: Cooler Master
- Model: CMP520
- SKU: ac-cmp-520
- MPN: CP520-KGNN-S00
Cooler Master CMP 520 Mid Tower Cabinet
CMP 520's asymmetrical front panel design frames the pre-installed three 120mm ARGB fans as unique centerpieces on the build.
- Three 120mm ARGB Fans Included
- Mesh Geode Front Panel
- Versatile Cooling Options
- Full Black Coating & PSU Cover
- Breathable Power Supply Shroud
Exterior Color | Black |
Materials | Steel, Plastic, Tempered Glass |
Dimensions (L X W X H) | 439 x 204 x 463mm (Incl. Protrusions), 432 x 204 x 448mm (Excl. Protrusions) |
Volume (Exlc. Protrusions) | 43.34L (Exlc. Protrusions) |
Motherboard Support | Mini ITX, Micro ATX, ATX |
Expansion Slots | 7 |
2.5" / 3.5" Drive Bays (Combo) | 2 |
2.5" Drive Bays | 2 |
I/O Panel | 1x USB 3.2 Gen 1 Type-A, 1x USB 2.0, 1x 3.5mm Headset Jack (Audio+Mic) |
ARGB Controller | CF120P (integrated with fan) or M/B |
Pre-Installed Fans – Front | 1x CF120P ARGB + 2x CF120S ARGB |
Fan Support – Top | 2x 120mm, 2x 140mm |
Fan Support – Front | 3x 120mm, 2x 140mm |
Fan Support – Rear | 1x 120mm
|
Radiator Support – Top | 120 / 240mm* (*RAM height below 35mm) |
Radiator Support – Front | 120mm, 140mm, 240mm, 280mm |
Radiator Support – Rear | 120mm |
Clearance - CPU Cooler | 161mm |
Clearance – PSU | 160mm |
Clearance – GFX | 350mm (w/o front fans & radiator) |
Cable Routing | 18.5mm |
Dust Filters | Top, Bottom |
Power Supply Support |
|
Series | CMP Series |
Size | Mid Tower |
Warranty | 2 Years |
Note* | Price, feature and specifications are subject to change without notice. |
