About this item
- ROG Thor 1200W Platinum II is the quietest PSU in its class.
- Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth.
- ROG heatsinks cover critical components, delivering lower temperatures and reduced noise.
- A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
- Built with low-ESR capacitors and other premium components to achieve 80 Plus Platinum Certification.
- OLED display monitors power draw in real time.
- Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.
- Brand: Asus
- Model: Thor 1200w
- SKU: ac-asus-1200w
- MPN: THOR-1200P2-GAMING

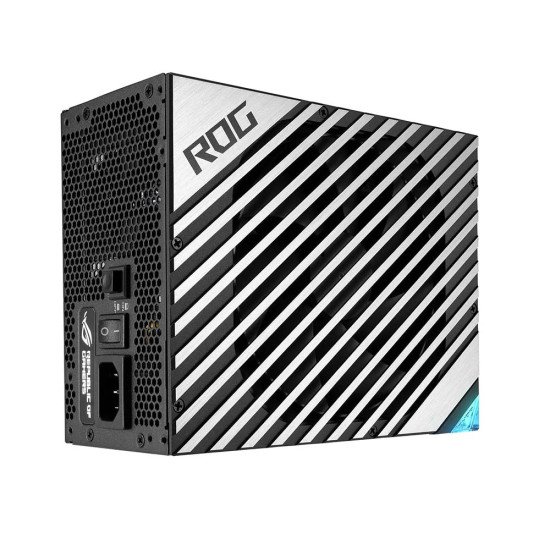

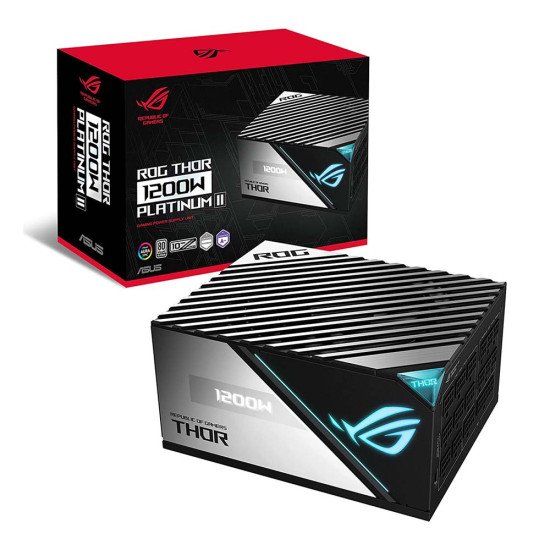

Asus ROG Thor 1200W Platinum II 1200 Watt 80 Plus Platinum Fully Modular Power Supply
Dimensions | 190 x 150 x 86 mm |
Efficiency | 80Plus Platinum |
Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
Hazardous Materials | ROHS |
AC Input Range | 100-240Vac |
Thermal Features | ROG Thermal Solution |
DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
Maximum Load | 25A 25A 100A 0.3A 3A |
Combined Load | 125W 125W 1200W 3.6W 15W |
Total Output | 1200W |

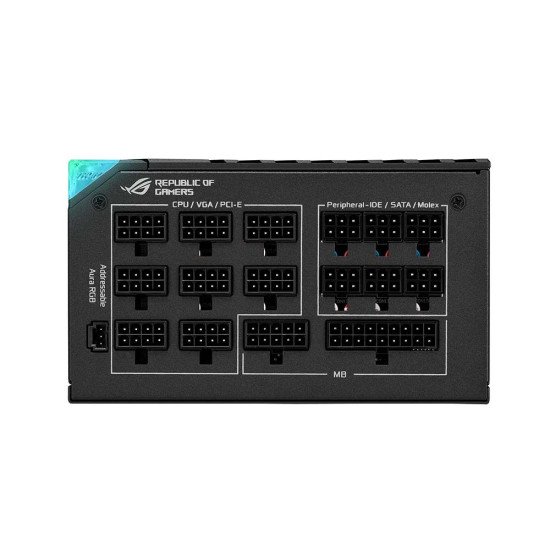

Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 8 SATA x 12 PERIPHERAL x 6 |
Package Contents | Power Cord x 1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) PCIE Cable 16-pin x1 (675mm) PCIE 1-to-1 Cable x4 (675mm) PCIE 1-to-2 Cable x2 (675+75mm) SATA 1-to-4 Cable x3 (400+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) Addressable RGB Cable x1 (800mm) ROG sticker x 1 ROG cable tie x 6 Sleeved Cable Combs (6-pin) x 4 Sleeved Cable Combs (8-pin) x 10 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
Weight | 2.37KG |
AURA SYNC | ARGB |
0dB Fan Button | Yes |
Cybenetics Noise Level Certification | A++ |
Warranty | 10 Year Limited |
Note* | Price, feature and specifications are subject to change without notice. |
