About this item
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- 0dB technology lets you enjoy light gaming in relative silence.
- Sleeved cables leave your rig looking tactically clean.
- 80cm 8-pin CPU connector (EPS 12V)
- 6-year warranty included.
- Brand: Asus
- Model: 550B
- SKU: ac-asus-550b
- MPN: TUF-GAMING-550B

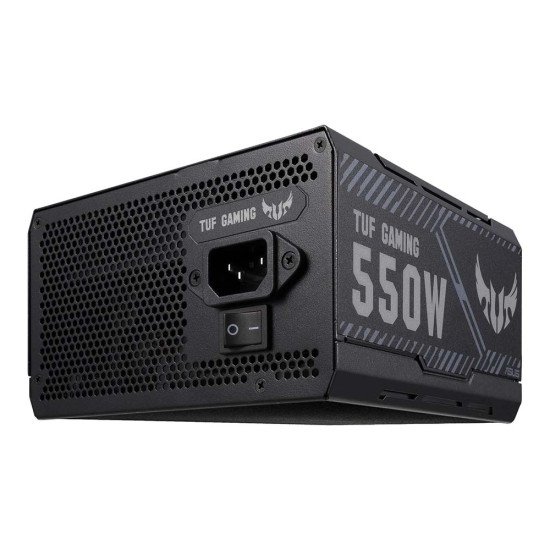

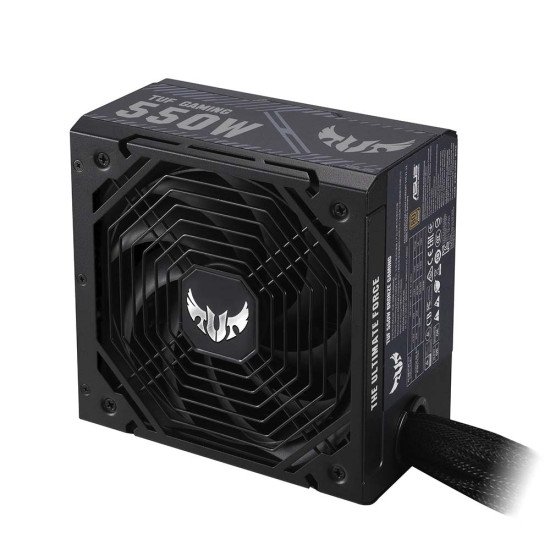

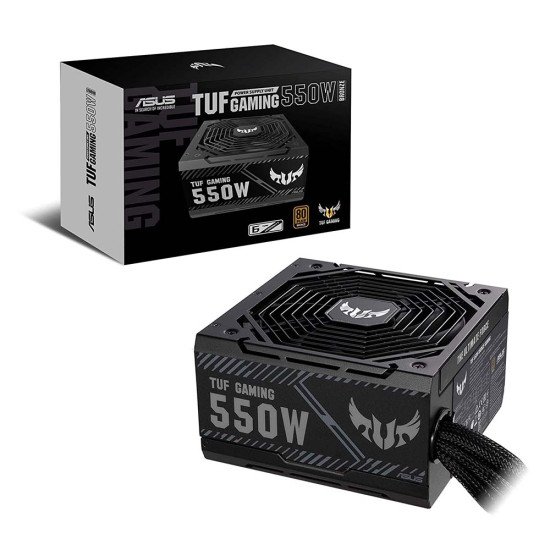

Asus TUF Gaming 550B 80 Plus Bronze Power Supply
Intel Specification | ATX12V |
Dimensions | 15 x 15 x 8.6 Centimeter |
Efficiency | 80Plus Bronze |
Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
Hazardous Materials | ROHS |
AC Input Range | 100-240Vac |
DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
Maximum Load | 25A 20A 45.8A 0.8A 3A |
Combined Load | 120W 120W 549.6W 9.6W 15W |
Total Output | 550W |
Connectors | MB 24/20-pin x1 CPU 4+4-pin x1 PCI-E 6+2-pin x2 SATA x5 Periplheral x4 |
Package Contents | Power Cord x1 Motherboard Power Cable x1 (600mm) CPU Cable x1 (800mm) PCI-E Cable x1 (600mm) SATA Cable x2 (400+120mm x1, 400+120+120mm x1) Periphreal x1 (400+150+150+150mm) TUF Gaming sticker x1 |
Weight | Single PSU: 1.89KG Product Weight (with packing): 2.58KG |
Warranty | 6 Year |
Note* | Price, feature and specifications are subject to change without notice. |
